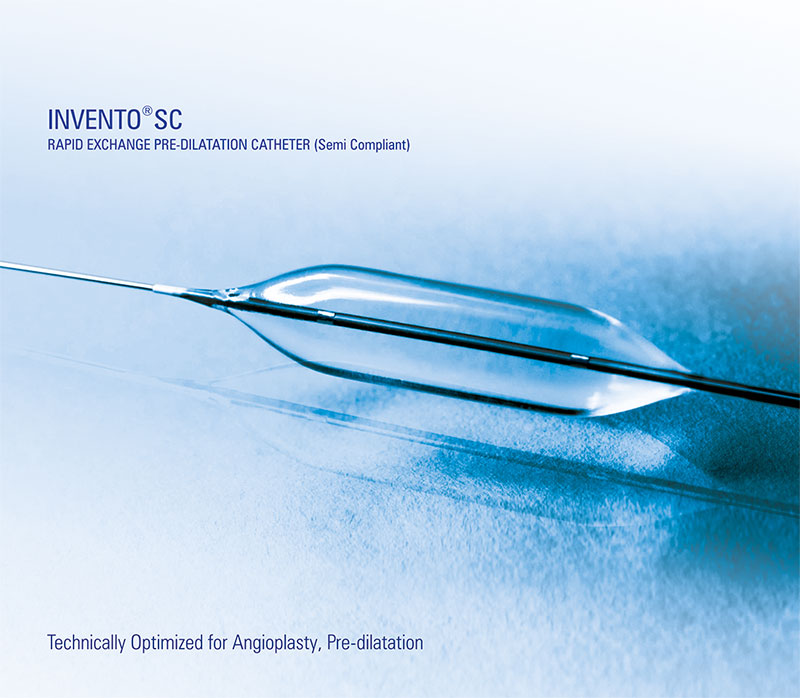

Invento – SC Pre-Dilatation Catheter

TECHNICAL PARAMETERS

Design	Laser Cut Closed Cell
Semi Compliant polyamide Ballon	Precise & Predictable ballon growth
Hydrophilic coating	On the distant Shaft
Radio Opaque markers	Zero Profile
Maximum recommended guidewire	0.014″ (0.36mm)
Maximum Guiding Catheter Compatibility	5F
Average Recoil	<5%
Excellent deflation time	Average less than 10 sec
Proximal Shaft diameter	1.19 F (0.73mm)
Useable Catheter length	1400 mm
Rapid Exchange Length	250 mm
Radio Opaque Visual Marker	90 cm and 100 cm
Tip Entry Profile	0.016″(0.40 mm)

Pressure Atm	1.25	1.50	2.00	2.25	2.50	2.75	3.00	3.50	4.00
2	0.96	1.21	1.71	1.96	2.21	2.46	2.71	3.21	3.71
4	1.06	1.31	1.81	2.06	2.31	2.56	2.81	3.31	3.81
6	1.16	1.41	1.91	2.16	2.41	2.66	2.91	3.41	3.91
8	1.25	1.50	2.00	2.25	2.50	2.75	3.00	3.50	4.00
10	1.29	1.54	2.06	2.31	2.56	2.81	3.06	3.56	4.08
12	1.33	1.58	2.12	2.37	2.62	2.87	3.12	3.62	4.16
14	1.37	1.62	2.18	2.43	2.68	2.93	3.18	3.68	4.24
16	1.41	1.66	2.24	2.49	2.74	2.99	3.24	3.74	4.30
18	1.44	1.69	2.27	2.52	2.78	3.03	3.29	3.80	4.36
20	1.47	1.72	2.30	2.55	2.82	3.07	3.34	3.86	4.42

Length (mm)	1.25	1.50	2.00	2.50	2.75	3.00	3.50	4.00
10 mm	INV NC 125/10	INV NC 150/10	INV NC 200/10	INV NC 250/10	INV NC 275/10	INV NC 300/10	INV NC 350/10	INV NC 400/10
12 mm	INV NC 125/12	INV NC 150/12	INV NC 200/12	INV NC 250/12	INV NC 275/12	INV NC 300/12	INV NC 350/12	INV NC 400/12
15 mm	INV NC 125/15	INV NC 150/15	INV NC 200/15	INV NC 250/15	INV NC 275/15	NINV NC 300/15	INV NC 350/15	INV NC 400/15
