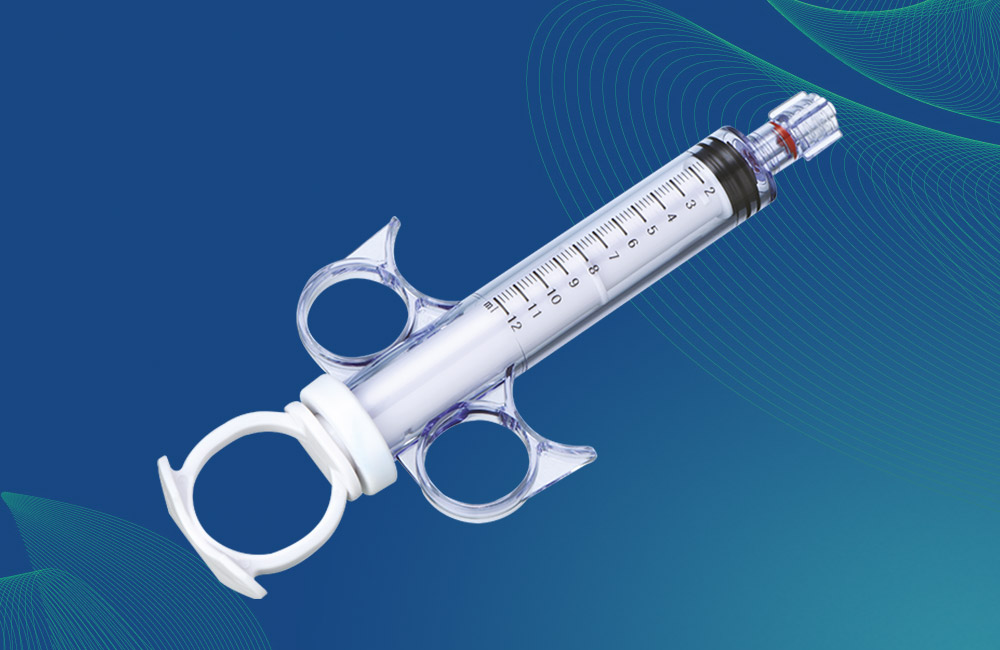

Control Device

Features

• Solid and smooth plunger with unique push button make it easy for operation.
• Clear scale, accurate control of infusion volume.
• Latex free.

Ordering Information

Catalogue No.	Description
111002	10CC PALM AND FINGER CONTROL
111001	12CC PALM AND FINGER CONTROL

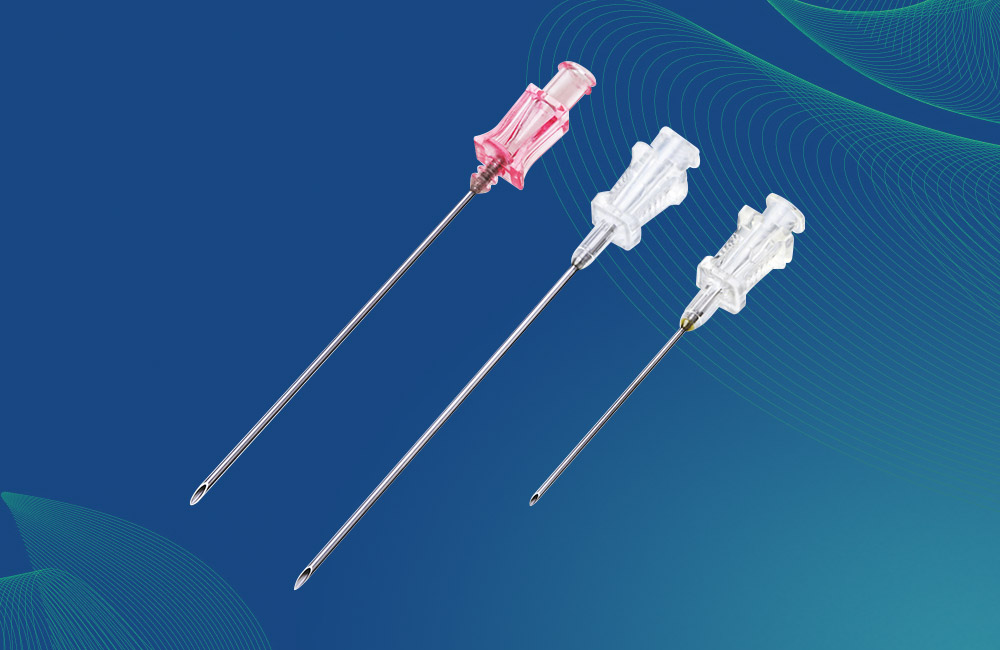

Advance Guidewire Introducer

Features

• Transparent hub for visualizing the guidewire.
• Available with echogenic tip.
• Smooth hub to cannula transition for easy introduction.
• Sharp cannula provides quick acces

Ordering Information

Catalogue No.	Size	Guidewire Compatibility	Length (cm)
110501 (BV/BC)	18G	0.035″/0.038″	7
110504	18G	0.035″/0.038″	7
110502	20G	0.021″/0.025″	4
110503	21G	0.018″/0.021″	4

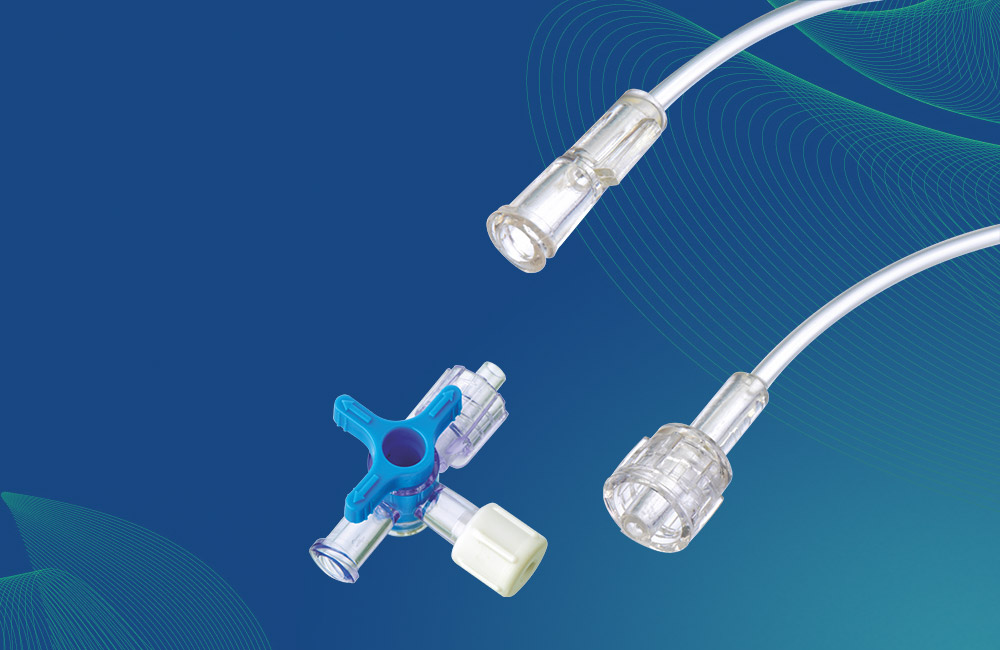

Easy Flow Pressure Monitoring Line

Features

• High Quality.
• Simple operating procedure.
• Transparent material ensures the need for large flow.
• Pressure Monitoring Line is available with 3 way stopcock

Technical Parameters

• Material : PVC/TPU
• Pressure Resistance : 450psi

Ordering Information

Catalogue No.	Length (CM)	Description	Pressure
111301	25	PM LINE	450
111302	50	PM LINE	450
111303	100	PM LINE	450
111305	200	PM LINE	450
111307	250	PM LINE	450

Catalogue No.	Length (CM)	Description	Pressure
111310	25	PM LINE WITH 3 WAY STOP COCK	450
111311	50	PM LINE WITH 3 WAY STOP COCK	450
111312	100	PM LINE WITH 3 WAY STOP COCK	450
111313	200	PM LINE WITH 3 WAY STOP COCK	450
111314	250	PM LINE WITH 3 WAY STOP COCK	450
111315	250	PM LINE WITH 3 WAY STOP COCK	450

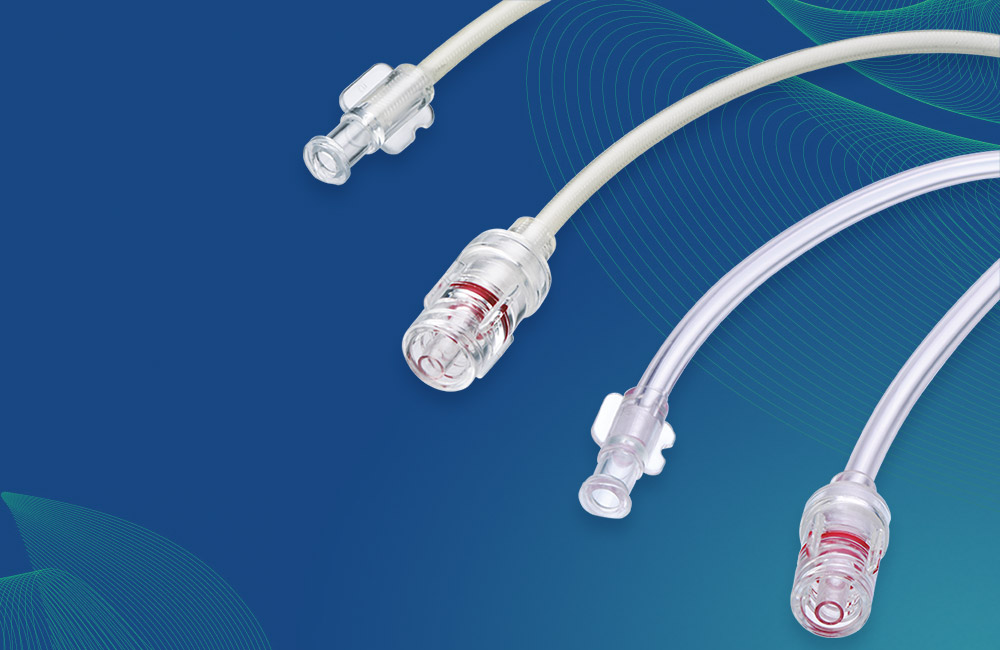

Easy Flow - Pressure Monitoring Line

(High Pressure)

Features

• High Pressure
• Simple operating procedure.
• Transparent material ensures the need for large flow.
• Both braided and Non braided tubes are available.

Technical Parameters

• Material : PVC/TPU
• Pressure Resistance : 1100psi/1200pis

Ordering Information

Catalogue No.	Length (CM)	Description	Pressure
111701	Custom* (25-300)	Non braided High Pressure Line	1100
111702	25	Braided High Pressure Line	1200
111703	50	Braided High Pressure Line	1200
111704	100	Braided High Pressure Line	1200

Catalogue No.	Length (CM)	Description	Pressure
111706	120	Braided High Pressure Line	1200
111707	150	Braided High Pressure Line	1200
111710	200	Braided High Pressure Line	1200

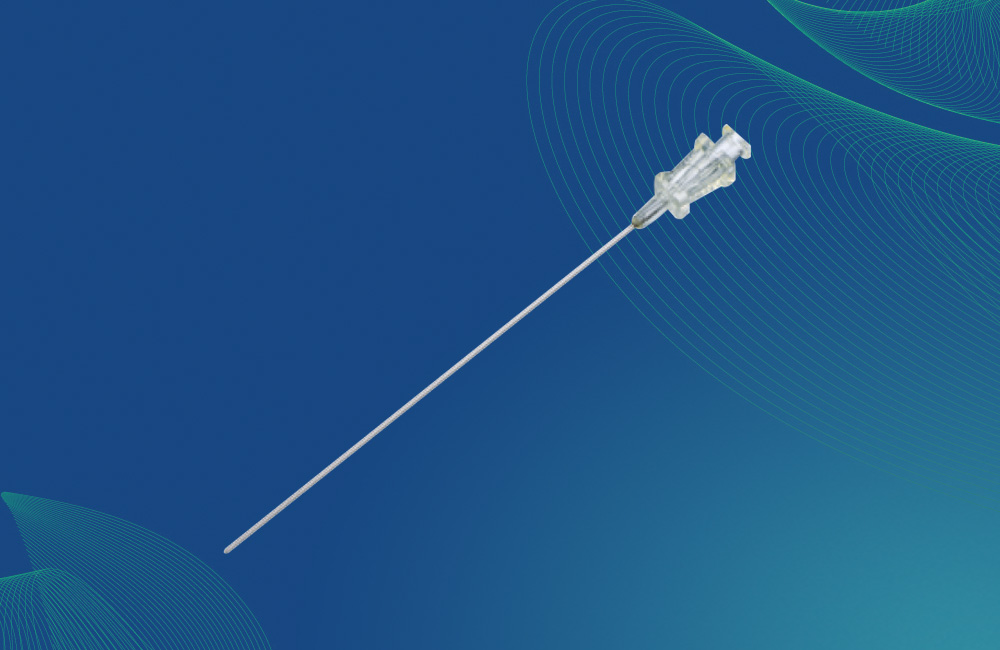

Insertion Tool / Blunt Introducer

Features

• Facilitate guide wire entry smoothly.
• Fits guide wire sizes up to 0.020 inches.

Ordering Information

Catalogue No.	O.D	I.D.
110401	20G (0.030″) (0.90MM)	(0.020″) (0.065MM)

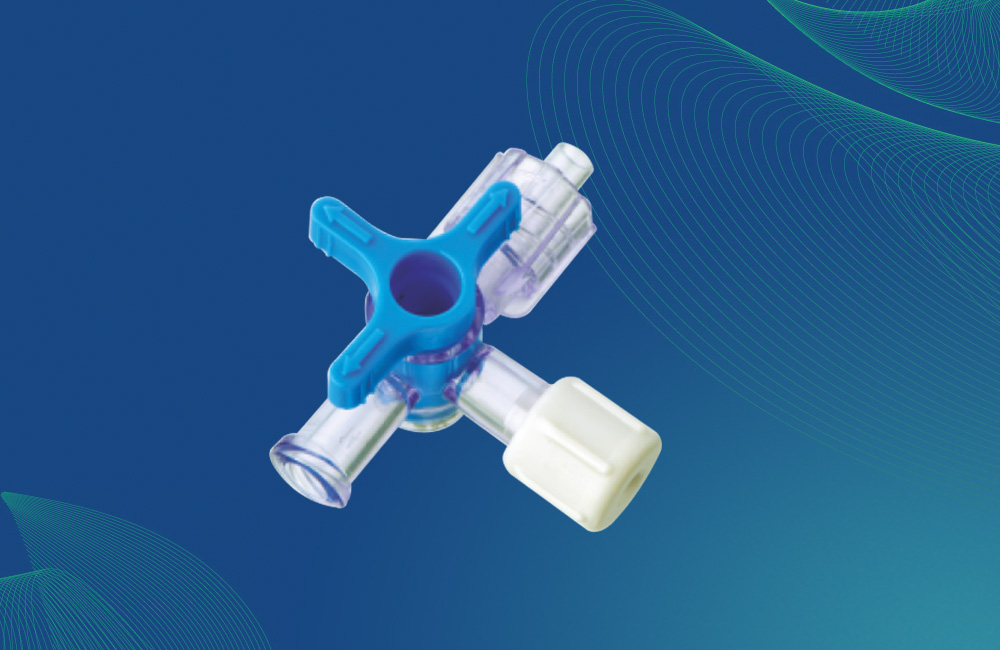

3 Way Stopcock

Features

• It provide 3 way flow.
• It is use for the attachment of extension line.

Ordering Information

Catalogue No.	Description	PSI
111603	3 WAY STOP COCK	250
111604	3 WAY STOP COCK	500
111601	3 WAY STOP COCK	1200
